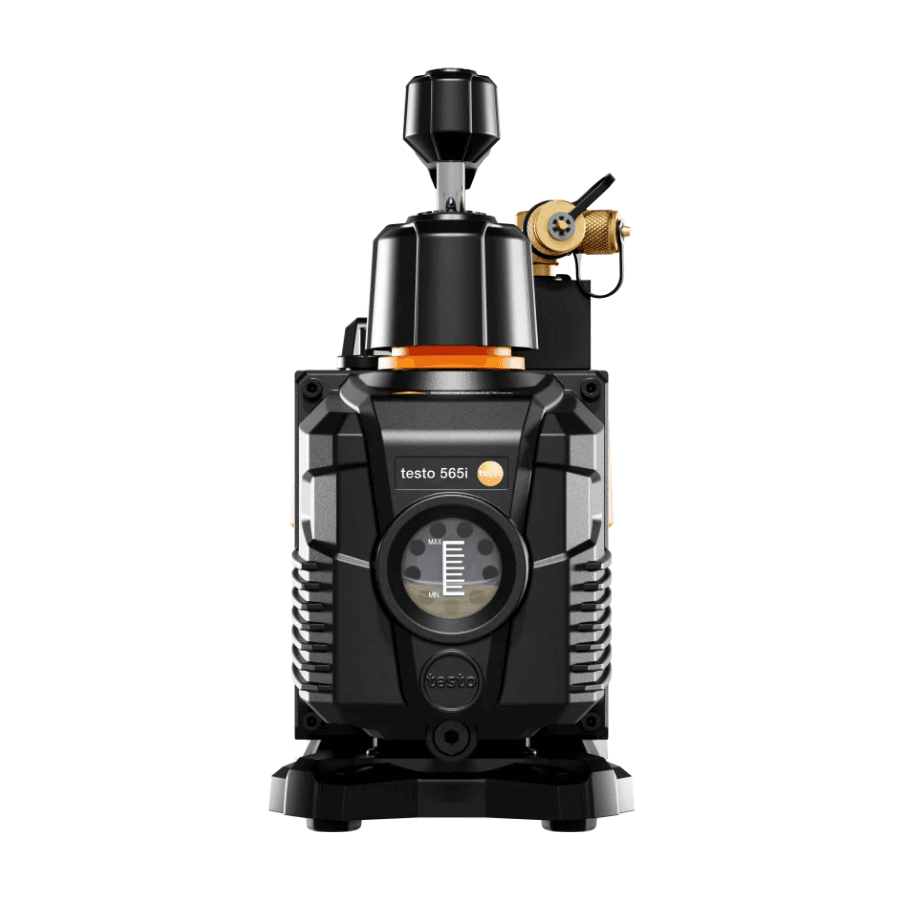

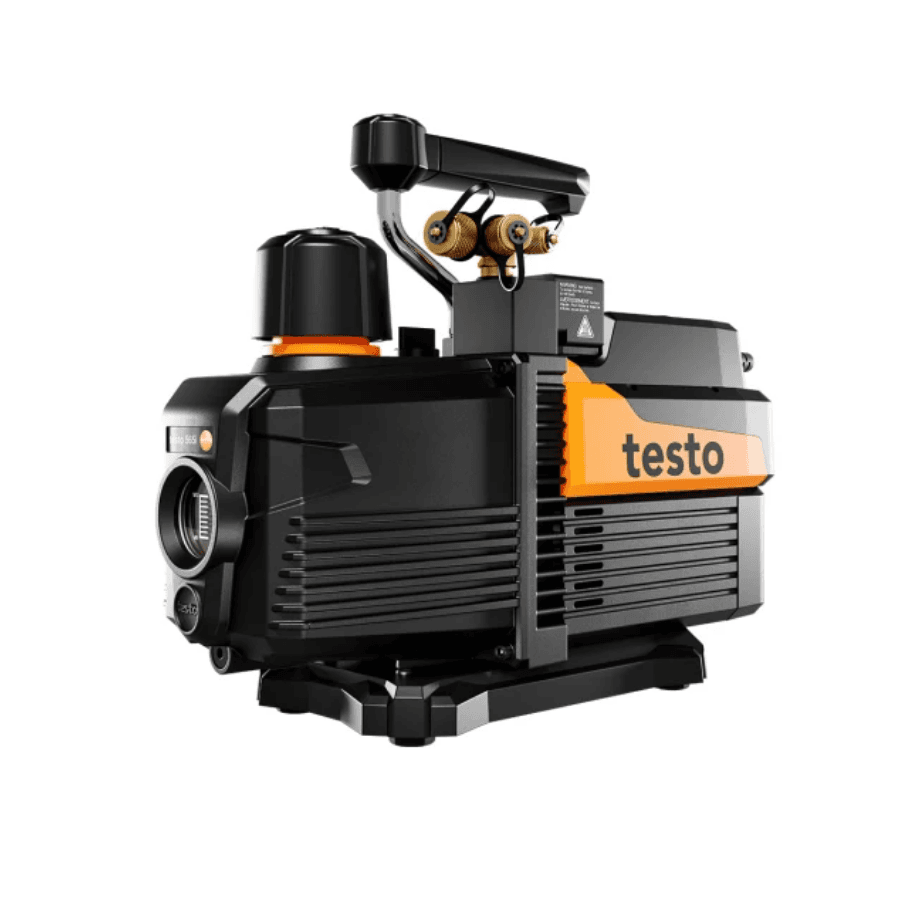

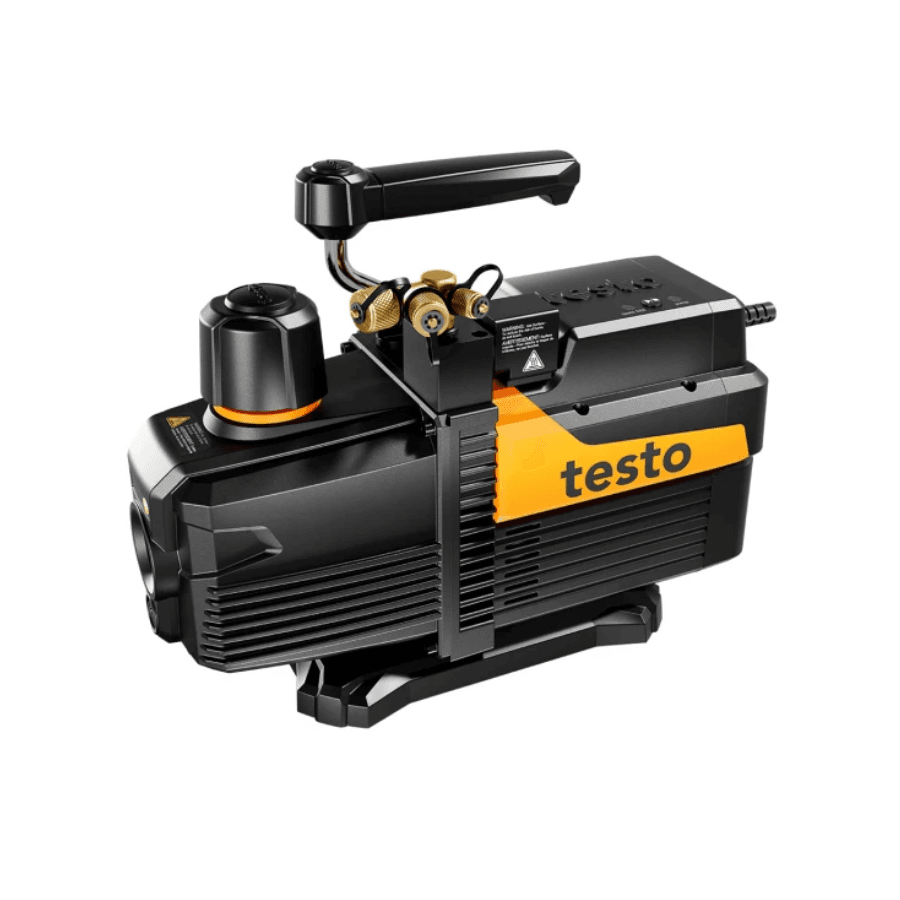

Testo 565i Smart Vacuum Pump
Testo 565i Smart Vacuum Pump is a two-stage rotary vane pump designed for automated evacuation of refrigeration systems and heat pumps. It delivers a flow rate of 7 CFM, or 198 l/min, and reaches an ultimate vacuum of 15 micron. When used with the testo 552i vacuum probe, the pump can stop the evacuation automatically once the chosen target value is reached and then start a vacuum hold test.
Smart connectivity helps make evacuation work easier to manage and document. The Testo 565i Smart Vacuum Pump connects automatically by Bluetooth to compatible Testo measuring instruments and the testo Smart App when switched on. Through the app, users can configure the process, monitor live readings and send measurement reports, while data logging supports complete documentation of evacuation work.
Practical features also support reliable day-to-day use. Compatibility with A2L and A3 refrigerants allows the pump to be used safely with these refrigerant classes, while a built-in non-return valve helps prevent loss of vacuum if the power fails. An oil sight glass makes the oil level quick to assess, and the simple oil change system helps streamline routine maintenance.
Key Benefits
- Automates refrigeration and heat pump evacuation when used with the testo 552i vacuum probe.
- Stops pumping automatically when the selected vacuum target value is reached.
- Starts a vacuum hold test automatically after the target vacuum has been achieved.
- Supports safe use with flammable A2L and A3 refrigerants.
- Connects with the testo Smart App for configuration and live reading monitoring.
- Allows measurement reports to be sent through the app for easier documentation.
- Logs evacuation data to support complete records of completed work.
- Oil sight glass gives a quick visual check of the oil level.
- Simple oil change design helps make routine maintenance easier.
- Built-in non-return valve helps protect the vacuum during an unexpected power failure.
Common Applications
Testo 565i Smart Vacuum Pump is suitable for a range of testing, maintenance and inspection tasks, including:

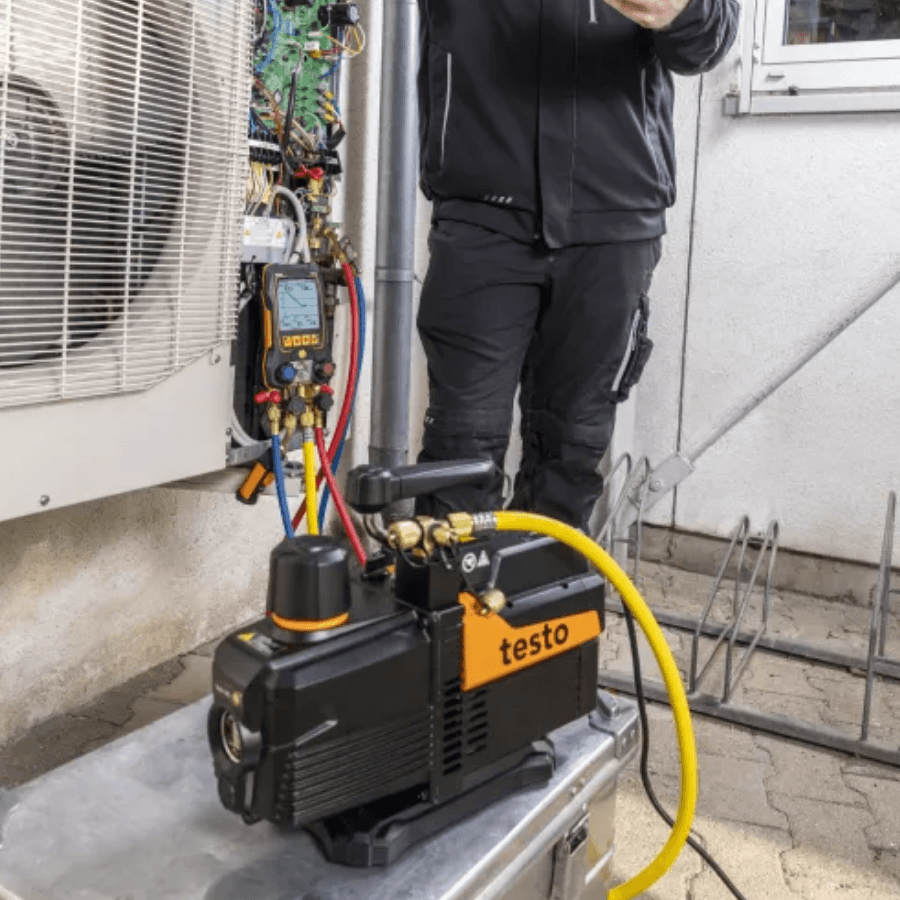

- Evacuating refrigeration systems.
- Evacuating heat pump systems.
- Removing foreign gases and moisture during evacuation.
- Automatic vacuum hold testing when used with the testo 552i vacuum probe.
- Recording data relating to system leak-tightness.
- Monitoring live evacuation readings through the testo Smart App.
- Documenting evacuation work with logged measurement data and reports.
Why Choose This Model?
Testo 565i Smart Vacuum Pump combines a 7 CFM flow rate with automated evacuation, integrated hold-test operation when paired with the testo 552i vacuum probe, Bluetooth connectivity and testo Smart App control. Its A2L and A3 refrigerant compatibility, non-return valve and practical oil maintenance features support efficient and reliable refrigeration work.
