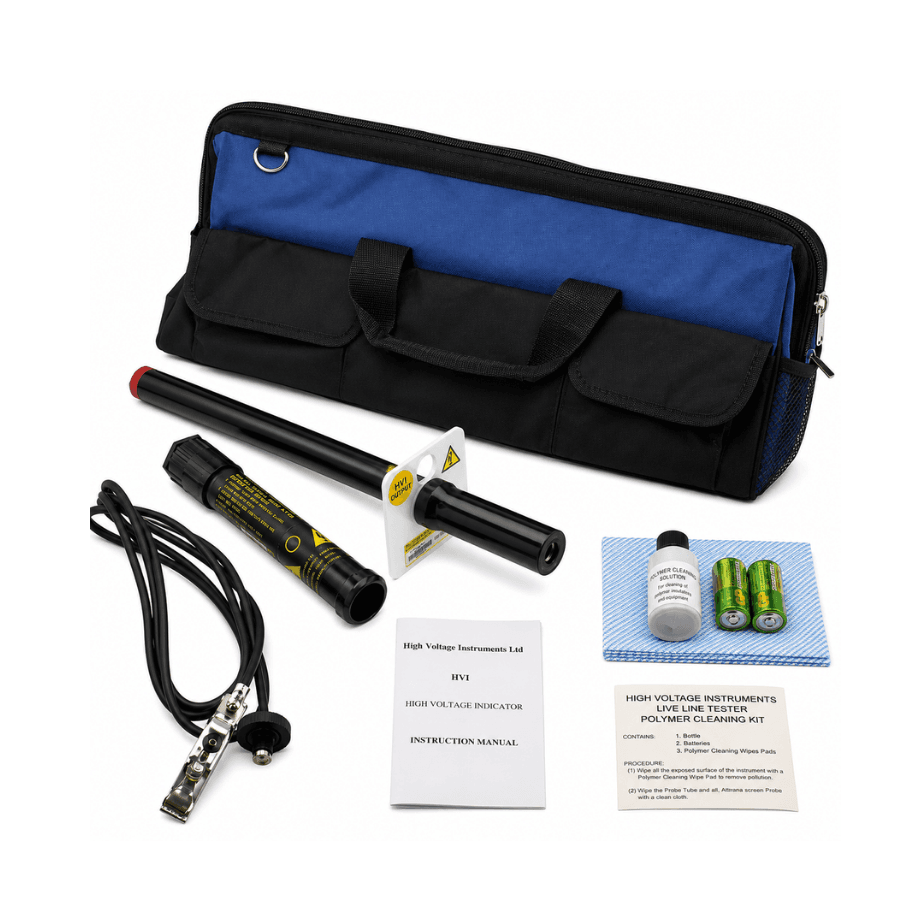

T&R F0357A High Voltage Potential Kit

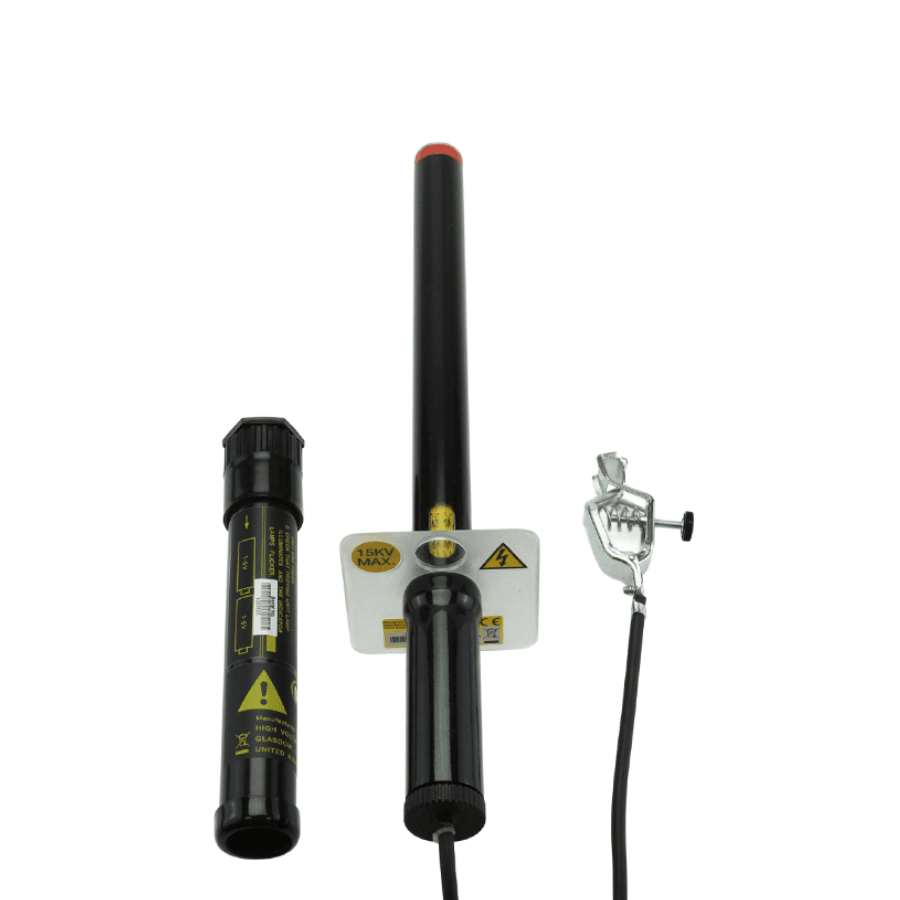

The T&R F0357A High Voltage Potential Kit provides a practical way to confirm the presence of AC or DC voltage before maintenance or installation work. It detects voltage from 0.2kV up to 15kV and uses flashing neon indicators to give a clear visual response. The flash rate rises as the voltage level increases, helping the operator see the indication clearly during testing.
Compact construction makes the indicator suitable for confined areas such as switchgear panels, switchgear enclosures and busbar compartments. A proven resistor chain measurement method provides dependable voltage indication, while high immunity to electrical interference supports use around switchgear equipment. Clear safety limit marks, an operator hand guard and a viewing window further support practical field operation.
The T&R F0357A High Voltage Potential Kit also includes a battery-powered proving unit so the fully assembled indicator can be checked before and after use. The proving unit provides a nominal 300V DC output and includes an automatic battery check function. With indoor and outdoor use in dry conditions, AC and DC capability and an operating temperature range of -5°C to +50°C, the kit is designed for regular high-voltage testing work.
Key Benefits
- Confirms the presence of AC and DC voltage before maintenance or installation work.
- Provides visible neon indication, with the flashing rate increasing as voltage rises.
- Detects voltage from approximately 200V up to 15kV for a broad range of high-voltage checks.
- Compact construction helps operators work in confined switchgear and busbar areas.
- High immunity to interference fields supports dependable operation around electrical equipment.
- Uses a proven resistor chain measurement method for consistent voltage indication.
- Clear safety limit marks help guide correct positioning during use.
- An operator hand guard with viewing window combines protection with clear indicator visibility.
- The proving unit allows the assembled indicator to be checked before and after testing.
- Indoor and outdoor suitability in dry conditions supports flexible field use.
Common Applications
T&R F0357A High Voltage Potential Kit is suitable for a range of testing, maintenance and inspection tasks, including:
- Checking for voltage before high-voltage maintenance work.
- Confirming voltage status before installation tasks.
- Testing AC voltage systems up to 15kV.
- Testing DC voltage systems up to 15kV.
- Voltage indication on busbars.
- Voltage checks within switchgear enclosures.
- Testing within confined switchgear panels and compartments.
- Confirming voltage status before apparatus is safely earthed.
- Indoor testing in dry conditions.
- Outdoor testing in dry conditions.
Why Choose This Model?
The T&R F0357A combines AC and DC voltage detection from 0.2kV to 15kV with a compact indicator, flashing neon display and dedicated proving unit. Its resistor chain measurement system, interference immunity, hand guard and viewing window are suited to practical high-voltage work in confined switchgear areas.
