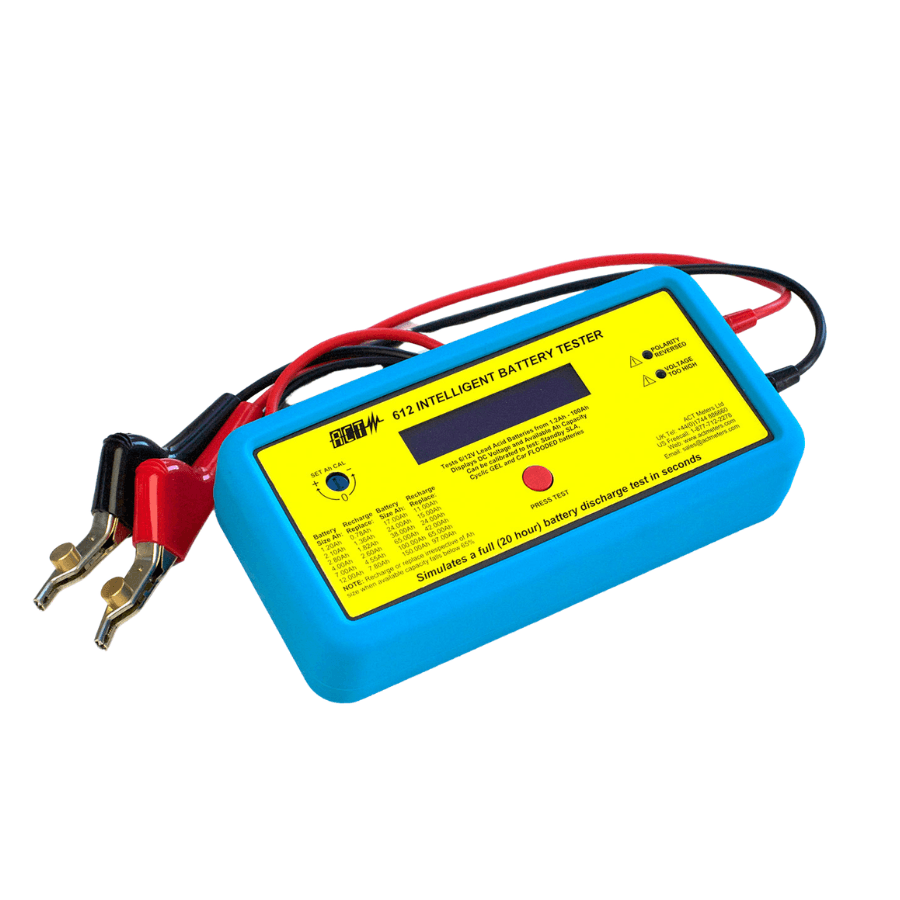

ACT 612 Intelligent Battery Tester
The ACT 612 Intelligent Battery Tester provides fast and clear checks for common lead-acid batteries. It measures the DC voltage and shows the available ampere-hour capacity. As a result, engineers can assess battery condition in seconds rather than waiting for a full discharge test.
Designed for 6 V and 12 V batteries, the tester supports standby SLA, cyclic GEL and car flooded types. It tests 6 V batteries from 1.2 Ah to 10 Ah and 12 V batteries from 1.2 Ah to 100 Ah. Two different set types are available to suit different testing needs.
Fast Battery Capacity Checks
Instead of carrying out a full 20-hour C20 discharge, the ACT 612 Intelligent Battery Tester simulates the test in a much shorter time. Once connected to clean battery terminals, it first displays the DC voltage. It then shows the actual Ah capacity available within seconds.
Advanced pulse load technology assesses the battery using its temperature and state of charge. Therefore, the test gives a more useful capacity reading than checks based only on voltage and internal resistance. The process also avoids the high drain linked with a standard battery load tester.
Simple Testing for Lead-Acid Batteries
A calibration control lets the user select the required battery type before testing. It can also help match the unit to different lead-acid technologies or specific battery brands. This makes the ACT 612 Intelligent Battery Tester suitable for varied service and maintenance work.
Clear results help users decide when a battery may need charging or replacement. Battery makers commonly advise action when the rated Ah capacity falls below 65 per cent, and the supplied guide helps users compare common battery sizes. With simple controls and no complex settings, the ACT 612 Intelligent Battery Tester supports quick testing across security, telecoms and mobility work.
Key Features
- Provides Ah capacity results within seconds
- Displays battery DC voltage before the capacity result
- Uses advanced pulse load technology for accurate checks
- Accounts for battery temperature and state of charge
- Offers simple operation with no complex user settings
- Includes a calibration control for battery type selection
- Can be adjusted for specific battery brands
- Produces clear results with little user interpretation
- Generates very low heat during continuous testing
- Draws operating power from the battery under test
- Helps identify batteries that need charging or replacement
- Avoids the heavy drain caused by conventional load testers
- Supports repeated testing in service and workshop settings
- Suitable for security, telecoms and mobility applications
- Available in two different set types
Technical Specifications
| Product name | ACT 612 Intelligent Battery Tester |
| Supported battery voltages | 6 V and 12 V |
| Supported battery technologies | Standby sealed lead-acid, cyclic GEL and car flooded lead-acid batteries |
| 6 V capacity range | 1.2 Ah to 10 Ah |
| 12 V capacity range | 1.2 Ah to 100 Ah |
| Displayed measurements | DC voltage followed by available ampere-hour capacity |
| Test method | Advanced pulse load analysis |
| Discharge test basis | Simulates a full 20-hour C20 discharge test |
| Result time | Results are displayed within seconds after a secure connection is made |
| Capacity assessment factors | Battery temperature and state of charge |
| Calibration | User calibration control for battery technology or specific battery brands |
| Power source | Powered by the battery under test |
| Heat output | Ultra-low heat generation for continuous testing |
| Battery depletion | The pulse load method does not deplete the battery in the same way as a conventional battery load tester |
| Connection requirement | Test leads must be fitted tightly to clean battery terminals |
| Capacity guidance | A battery may need recharging or replacement when its rated Ah capacity falls below 65 per cent, based on battery manufacturer guidance stated in the supplied product information |
| Set options | Two different set types are available |
| Typical applications | Security systems, telecommunications equipment, mobility products and general lead-acid battery servicing |
Document Downloads
What’s Included
- ACT 612 Intelligent Battery Tester
- ACT 612TL test leads
- ACT 430N soft carry case
- Sample ACT BTL labels
- Operating instructions
- Certificate of calibration
